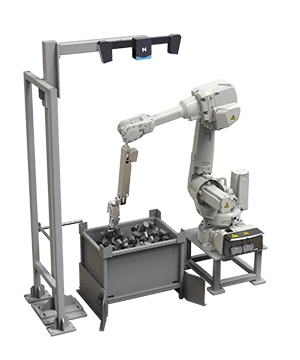

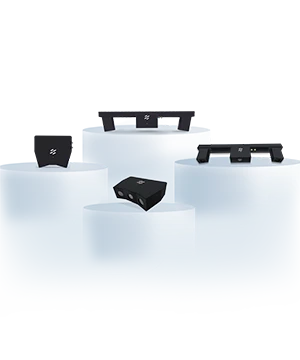

Series of a new generation of True 3 d camera to projectiles with coded information pattern or the combination of the original system design the space characteristics of the laser line more rapid scanning to obtain three-dimensional point cloud data of the object, Z to the absolute maximum precision is better than that of 8 microns, covering more than 20 mm to 1500 mm of sight, and is applicable to 3 d, 3 d detection and measurement of disordered grab, carbon, sorting, etc.
(1) Good imaging quality: the scanning frame rate can be up to 4Hz, and the repeatability accuracy can be better than 1 m
(2) Continuous stability: Stable and reliable performance of heat dissipation, vibration resistance, EMC, etc., suitable for harsh environment
(3) Wide dynamic range: HDR and R/G/B/ light source switchable modes greatly improve the integrity of point cloud

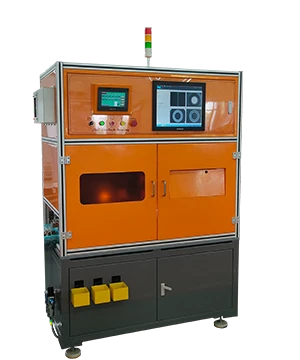

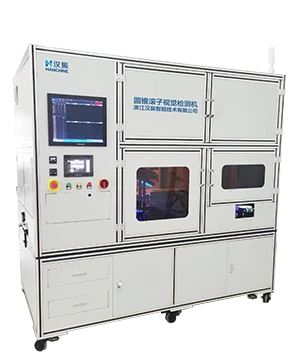

To realize the full detection of appearance defects of cylindrical/conical rollers

The unique optical scheme of combined light field realizes the simultaneous presentation of 12 defects on both sides
